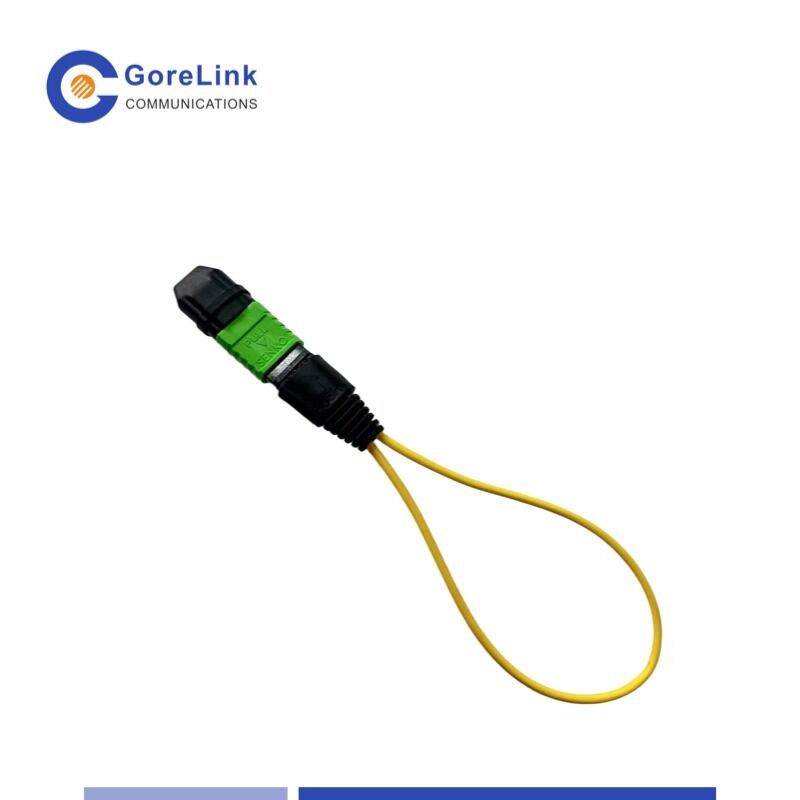

12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing

Наименование марки: GoreLink
Номер модели: G4431
MOQ: 1 шт.
Время доставки: 1-3 рабочих дня
Условия оплаты: Т/Т, западное соединение, ПайПал
Подробная информация
Место происхождения:
Китай
Продукт:
MPO SM Модуль оптоволоконной обратной связи
Особенность:
Подходит для тестирования высокоскоростных оптических сетей.
НОМЕР ЧАСТИ.:
ГЛ-МЛБ-12СМФ
Тип разъема:
MPO/APC Женский
Тип волокна:
SingleMode
Цвет:
Зеленый
Вносимая потеря:
≤0,35 дБ
Рабочая температура:
-20 ~ +75°C
Температура хранения:
-40~+85℃
Упаковывая детали:
1 шт. на мешок
Выделить:

12 fiber MPO/APC loopback module

,

single mode fiber loopback for QSFP

,

MPO/APC fiber testing tool

Характер продукции
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP Testing
Overview
The MPO Fiber Loopback Module is engineered for comprehensive fiber optic network testing, signal routing, and transceiver verification in high-speed communication systems. This essential testing tool is widely deployed in data centers, telecommunication networks, and optical transmission systems to validate signal continuity and assess network performance.
Featuring high-quality MPO/MTP connectors and precision fiber alignment, this loopback module delivers stable optical performance with minimal insertion loss. It serves as an ideal solution for 40G/100G optical transceiver testing, switch verification, and comprehensive network diagnostics.
Applications
  • Data center cabling systems
  • 40G/100G transceiver testing
  • QSFP module verification
  • Optical switch testing
  • Telecom networks
  • Fiber optic diagnostics and maintenance
Key Features
  • MPO/MTP connector interface
  • Low insertion loss and stable performance
  • High-density fiber connectivity
  • Compact and durable design
  • Plug-and-play installation
  • Suitable for high-speed optical network testing
Technical Specifications
Fiber Loopback Type MPO loopback
Fiber Structure 12F
Fiber Mode Singlemode
Polish Type APC
Insertion Loss ≤0.35dB
Fiber Connector Female
Housing Color Green
Compliance Telcordia GR-326-CORE
12 Fiber MPO/APC Singlemode Fiber Loopback Module for QSFP testing 0
Documentation
Download Datasheet
Ordering Information
Part Number Description
GL-MLB-12SMF 12F SM MPO Loopback, Standard loss, Female
For further assistance, please contact us at sales@gorelink.com
